Semi-Automatic Manifold System

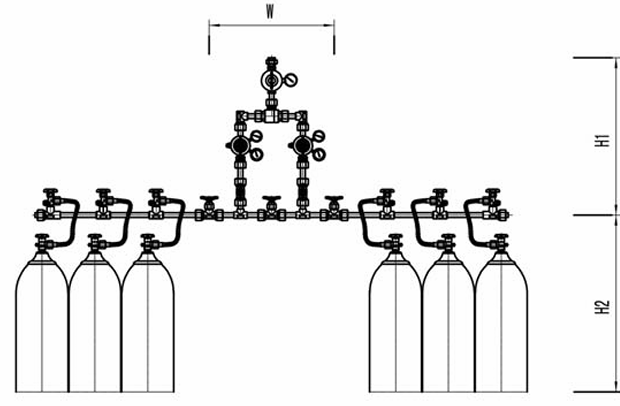

5400 series manifold system is designed to provide an uninterrupted gas supply. It consists of a primary bank and a reserve bank of cylinders. When the primary cylinder bank is depleted, the changeover takes place automatically to provide continuous supply of gas from the reserve bank. Upon changing the cylinders, the regulators on both banks need to be re-adjusted in order for the changeover to occur automatically next time
Features
Standard Construction
- Open-style manifold.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accommodate future expanison needs.
- Pressure switch port available.
- Easy Installation
- Wall or stand mount available
- Secondary regulator stablizes gas flow rate of the main pipeline
- Unique changeover valve provides continuous supply of gas between primary and reserve banks
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Pigtails for Acetylene models are equipped with dry flashback arrestor
- For Acetylene or fuel gas model, outlet connection is mounted with dry flashback arrestor (FA30PF) for additional safety precaution. As an option, hydraulic flashback arrestors are available for an additional charge.
- Gentec's ultra high flow regulator series 155L (except for acetylene) & 155M
- Relief valve for protecting downstream piping.
