Single Manifold Systems

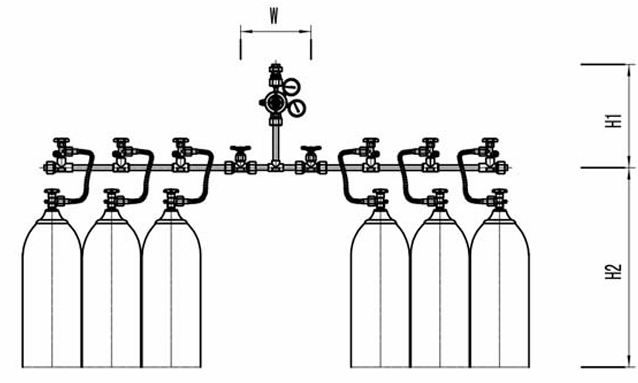

5300 series single manifold system consists of a main gas delivery bank and a reserve bank of cylinders. When the primary cylinder bank is depleted, “turn off” the valve on the primary bank and open the valve on the reserve bank for continuous supply of gas. The changeover of this system needs to be operated manually
Features
Standard Construction
- Open-style manifold.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accommodate future expanison needs.
- Pressure switch port available.
- Easy Installation
- Wall or stand mount available
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Pigtails for Acetylene models are equipped with dry flashback arrestor
- For Acetylene or fuel gas model, outlet connection is mounted with dry flashback arrestor (FA30PF) for additional safety precaution. As an option, hydraulic flashback arrestors are available for an additional charge.
- Gentec's high flow regulator series 155M
- Relief valve for protecting downstream piping.
