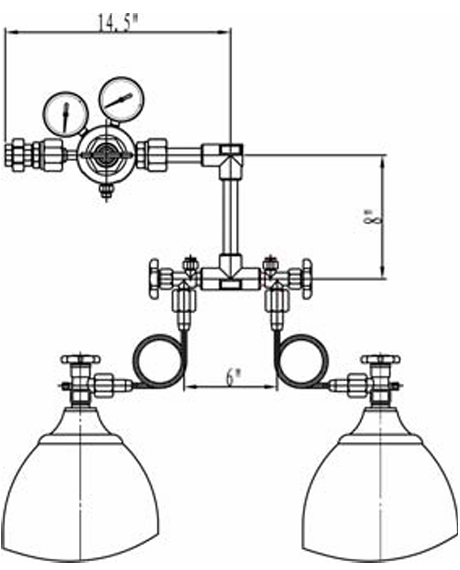

Dual Manifold Systems
5100 series dual manifold system is a simple gas delivery system which provides a maximum of 2 cylinders in service at one time . This non-extendable system is suitable for maintenance and simple gas applications or one cylinder in service at one time and one in reserve where a manual change over is required.
Features
Standard Construction
- Silver brazing on piping joints for maximum leak prevention.
- Individual Station Shut-off Valves
- Wall mount installation only
- 24" flexible high pressure stainless steel braided pigtails with check valve, rigid copper pigtails are available as an option. Pigtails for acetylene models are equipped with dry flashback arrestor.
- For Acetylene or Fuel gas model, outlet connection is mounted with a dry flashback arrestor (FA30PF) for additional safety precaution.
- GENTEC's high flow regulator series 153M
- Relief valve for protecting downstream piping

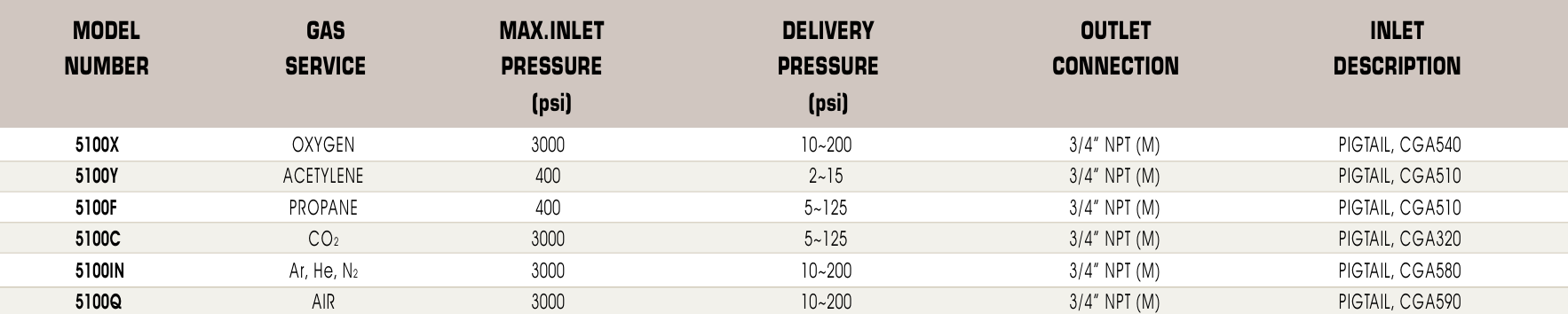

Please specify the "model number" when ordering. For example: 5100X indicates a dual “oxygen” manifold
system
